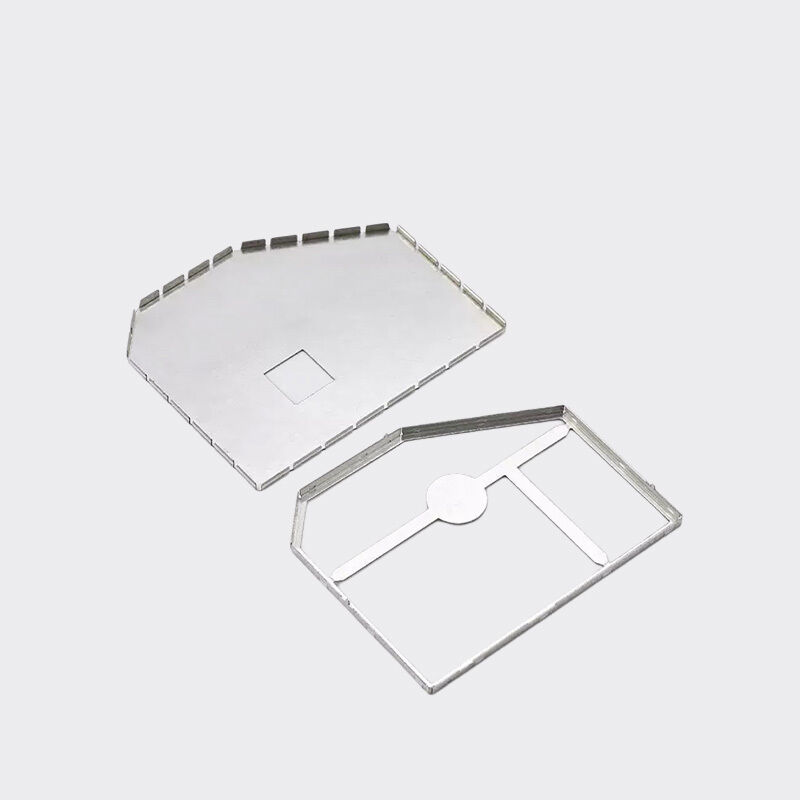

Custom EMI RF Shield Can for PCB Electronic Components Shielding case

Product Details:

Place of Origin:	CHINA
Brand Name:	KAIYAN
Certification:	ISO9001

Detail Information

Place of Origin:

CHINA

Brand Name:

KAIYAN

Certification:

ISO9001

Material:

Nickel Silver(Customizable)

Tolerance:

±0.05 Mm

Surface Treatme:

Tin Plating

Mounting:

SMT Reflow Soldering

Flatness Tolerance:

≤ 0.05 Mm

Application:

Mobile Devices WiFi / BT / GPS Modules

Shielding Effectiveness:

≥60 DB

Customization:

Available

Trading Information

Minimum Order Quantity:

Price:

0.05$-0.1$/piece

Packaging Details:

Tape & Reel Packaging or Vacuum Formed Tray Packaging

Delivery Time:

8 work days

Payment Terms:

T/T

Supply Ability:

1000000pcs/month

Product Description

Custom EMI RF Shield Can for PCB Electronic Components Shielding Case

Our RF/EMI shielding covers are designed to provide reliable electromagnetic interference protection for PCB electronic components and communication devices. Manufactured with high-precision metal stamping and advanced tooling technology, the shield cans ensure stable performance, excellent solderability, and strong structural durability.

We support custom designs based on customer drawings or samples, including one-piece deep drawn shields and two-piece removable shielding covers. Various materials are available such as tinplate (SPTE), nickel silver, stainless steel, and copper alloy to meet different conductivity and shielding requirements.

Widely used in wireless communication modules, automotive electronics, IoT devices, GPS systems, industrial control boards, medical equipment, and consumer electronics, our RF shield cans help reduce signal interference and improve overall device stability and EMC performance.

Product Specifications

Specification Item	Description
Product Name	RF Shield Can / EMI Shielding Cover
Material	Nickel Silver (CuNiZn Alloy)
Thickness	0.20 mm / 0.25 mm / 0.30 mm (customizable)
Dimensions	Customized according to PCB layout
Tolerance	±0.05 mm (standard)
RoHS Compliance	Yes
OEM / ODM Service	Supported
Applications	Mobile Devices, RF Modules, Wireless Communication, Automotive Electronics

Why RF Shield Cans Are Manufactured by Metal Stamping

Superior EMI / RFI Shielding Performance: Metal stamping creates a continuous and dense metal structure, which provides more stable and reliable EMI/RFI shielding performance compared to coated plastics or composite materials. This is especially critical for high-frequency RF applications where signal integrity must be maintained.
High Dimensional Precision for Compact PCB Layouts: Precision metal stamping and forming allow for tight tolerances, uniform wall thickness, and complex geometries, making stamped RF shield cans ideal for high-density and compact PCB designs commonly used in modern electronic devices.
Excellent Solderability for SMT Assembly: Stamped metal RF shield cans are fully compatible with SMT reflow soldering processes, ensuring reliable grounding and strong mechanical attachment to the PCB. This makes them well suited for automated pick-and-place assembly lines, improving production efficiency and consistency.
Cost-Effective for Mass Production: Although tooling is required, metal stamping offers low unit cost at high volumes, fast production cycles, and high yield rates. This makes stamped RF shield cans a cost-efficient solution for consumer electronics, automotive electronics, and wireless communication products.
High Mechanical Strength and Long-Term Reliability: Metal stamped RF shield cans provide excellent mechanical strength, resistance to deformation, and thermal stability, enabling reliable performance in demanding environments such as automotive electronics and industrial applications.
Flexible Customization and Fast Prototyping: With optimized tooling design, metal stamping supports low tooling cost, rapid prototyping, and flexible customization. This makes it suitable for new product development, pilot runs, and scalable mass production.

Our Advantages

Fast prototyping with short lead time
Low tooling cost, ideal for new project development
Stable mass production with consistent quality
Precision stamping and forming for tight tolerances
OEM & ODM services supported

Frequently Asked Questions

What does KAIYAN Hardware manufacture?

Precision metal stamping parts, including RF shield cans, EMI shielding components, brackets, terminals, and custom metal parts.

Do you support custom designs?

Yes. OEM & ODM customization is available based on customer drawings or samples.

How fast is prototyping?

Prototype samples are typically delivered within 7-15 days, depending on part complexity.

Is tooling cost competitive?

Yes. Optimized tooling design helps keep tooling costs low, ideal for new project development.

Can you support mass production with stable quality?

Yes. We offer stable mass production with consistent quality control and reliable delivery.

KAIYAN Hardware provides reliable metal stamping solutions with fast prototyping, low tooling cost, and consistent quality from prototype to mass production.
