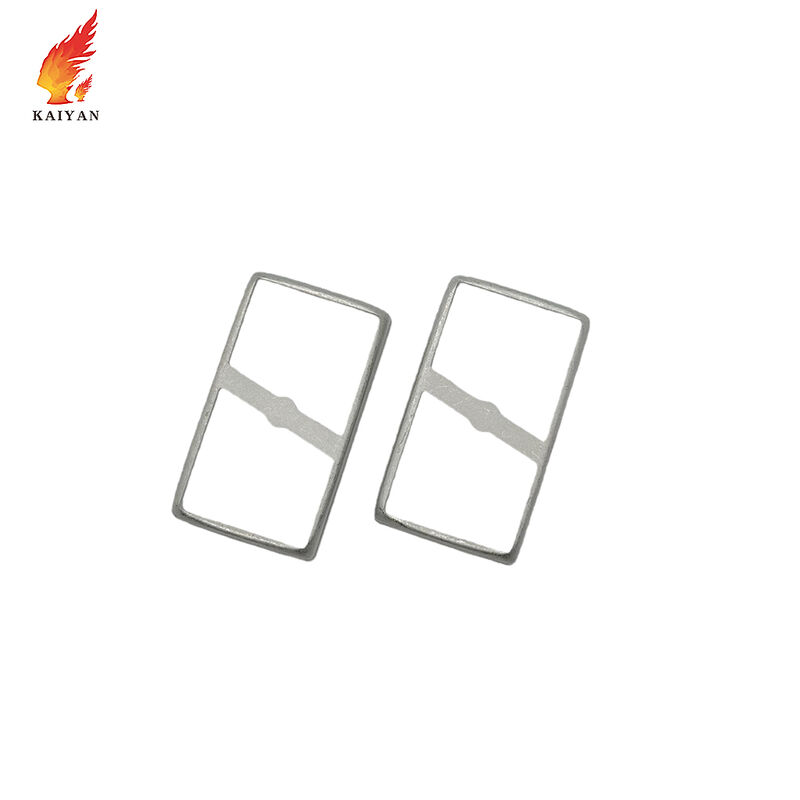

Nickel Silver Deep Drawn RF Shield Can High Precision EMI Shielding Cover

Tin-Plated Deep Drawn RF Shield Can Description

Our tin-plated deep drawn RF shield cans are designed to deliver reliable EMI / RFI shielding for high-frequency electronic circuits requiring stable signal integrity and compact PCB layouts. The deep drawing process creates a seamless, rigid metal structure, effectively minimizing electromagnetic leakage and improving overall shielding efficiency.

The tin-plated surface provides excellent solderability and low contact resistance, ensuring stable grounding and strong attachment during SMT reflow soldering. This makes the shields fully compatible with automated pick-and-place assembly processes.

With high dimensional accuracy, good flatness, and consistent wall thickness, tin-plated deep drawn RF shield cans are well suited for Bluetooth modules, wireless communication devices, automotive electronics, and industrial applications. Combined with durable materials and controlled manufacturing processes, they offer long-term reliability in both prototype and high-volume production.

Why Are RF Shield Cans Manufactured by Metal Stamping?

Superior EMI / RFI Shielding Performance

Metal stamping creates a continuous and dense metal structure, which provides more stable and reliable EMI / RFI shielding performance compared to coated plastics or composite materials. This is especially critical for high-frequency RF applications where signal integrity must be maintained.

High Dimensional Precision for Compact PCB Layouts

Precision metal stamping and forming allow for tight tolerances, uniform wall thickness, and complex geometries, making stamped RF shield cans ideal for high-density and compact PCB designs commonly used in modern electronic devices.

Excellent Solderability for SMT Assembly

Stamped metal RF shield cans are fully compatible with SMT reflow soldering processes, ensuring reliable grounding and strong mechanical attachment to the PCB. This makes them well suited for automated pick-and-place assembly lines, improving production efficiency and consistency.

Cost-Effective for Mass Production

Although tooling is required, metal stamping offers low unit cost at high volumes, fast production cycles, and high yield rates. This makes stamped RF shield cans a cost-efficient solution for consumer electronics, automotive electronics, and wireless communication products.

High Mechanical Strength and Long-Term Reliability

Metal stamped RF shield cans provide excellent mechanical strength, resistance to deformation, and thermal stability, enabling reliable performance in demanding environments such as automotive electronics and industrial applications.

Flexible Customization and Fast Prototyping

With optimized tooling design, metal stamping supports low tooling cost, rapid prototyping, and flexible customization. This makes it suitable for new product development, pilot runs, and scalable mass production.

Our Advantages

Fast prototyping with short lead time

Low tooling cost, ideal for new project development

Stable mass production with consistent quality

Precision stamping and forming for tight tolerances

OEM & ODM services supported

FAQ

1. What does KAIYAN Hardware manufacture?
   Precision metal stamping parts, including RF shield cans, EMI shielding components, brackets, terminals, and custom metal parts.

2. Do you support custom designs?
   Yes. OEM & ODM customization is available based on customer drawings or samples.

3. How fast is prototyping?
   Prototype samples are typically delivered within 7–15 days, depending on part complexity.

4. Is tooling cost competitive?
   Yes. Optimized tooling design helps keep tooling costs low, ideal for new project development.

5. Can you support mass production with stable quality?
   Yes. We offer stable mass production with consistent quality control and reliable delivery.

KAIYAN Hardware provides reliable metal stamping solutions with fast prototyping, low tooling cost, and consistent quality from prototype to mass production.
