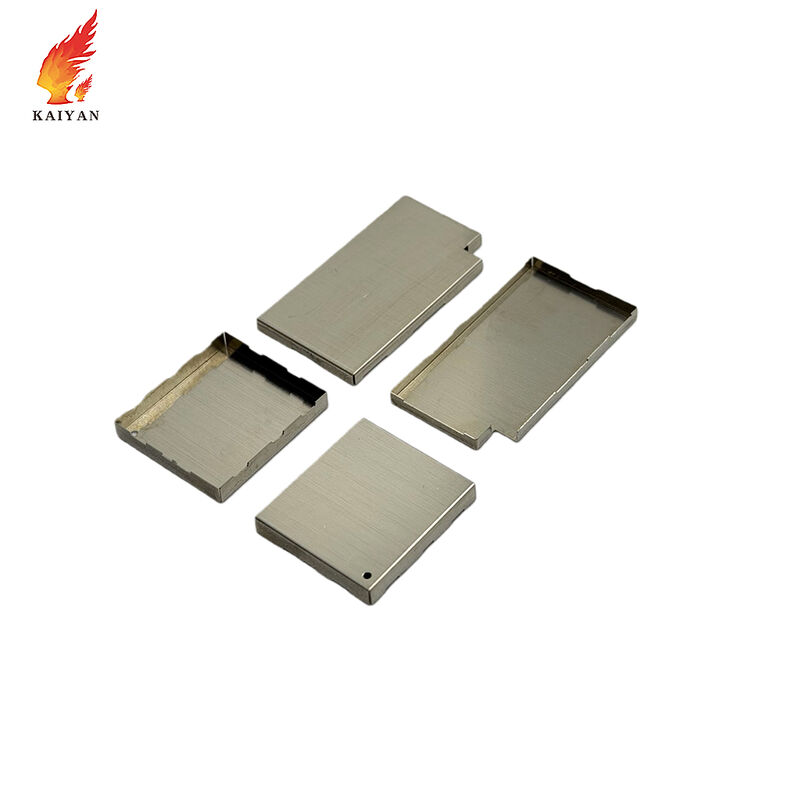

High Precision Nickel Silver RF Shield Can 0.05mm Tolerance RoHS Compliance

Our stamped RF shield cans are developed to meet the growing demands of high-frequency and high-density electronic designs, where EMI / RFI control, assembly accuracy, and production stability are critical. Through optimized metal stamping and forming processes, we achieve precise geometry, repeatable dimensions, and reliable solder joints, ensuring effective protection for RF and high-speed signal components on modern PCBs. Serving electronics OEMs and Tier-1 suppliers, our shielding solutions combine strong anti-interference capability with lightweight and mechanically robust structures. Supported by low tooling investment and fast prototype turnaround, our RF shield cans enable smooth transition from early-stage development to stable, high-volume manufacturing in automotive electronics, wireless communication, and industrial systems.

Why Are RF Shield Cans Manufactured by Metal Stamping?

Metal stamping is the preferred manufacturing process for RF shield cans because it delivers stable EMI / RFI shielding, high dimensional precision, and excellent SMT compatibility. The continuous metal structure ensures reliable interference suppression for high-frequency RF applications, while tight tolerances support compact and high-density PCB layouts.

In addition, stamped RF shield cans offer strong mechanical strength, thermal stability, and long-term reliability, making them suitable for automotive, wireless communication, and industrial electronics. With low unit cost at high volumes, fast production cycles, low tooling cost, and rapid prototyping capability, metal stamping provides a cost-effective solution from new product development to mass production.

Our Advantages

 Fast Prototyping with Short Lead Time

• In-house tooling and stamping capability
• Rapid sample turnaround for design validation
• Short development cycle to accelerate time-to-market

 Low Tooling Cost for New Project Development

• Optimized tool design to minimize initial investment
• Cost-efficint solutions for low to medium volume projects
• Ideal for R&D, pilot runs, and early-stage product development

 Stable Mass Production with Consistent Quality

• Process-controlled production for high-volume orders
• Strict quality inspection throughout manufacturing stages
• Consistent dimensions and performance from batch to batch

 Precision Stamping & Forming for Tight Tolerances

• High-precision stamping and forming processes
• Capability to maintain tight dimensional tolerances
• Suitable for complex geometries and compact PCB layouts

 OEM & ODM Services Supported

• Custom designs based on drawings or samples
• Engineering support from concept to production
• Flexible manufacturing solutions tailored to customer needs

Applications

• Consumer Electronics – Smartphones, wearables, smart devices

• Wireless Communication – RF modules, Wi-Fi, Bluetooth, GPS systems

• Automotive Electronics – Infotainment, ADAS, EV electronic modules

• Industrial Electronics – Control systems, automation equipment

• Medical Electronics – Diagnostic and monitoring devices

• IoT & Smart Systems – Connected devices and smart applications
