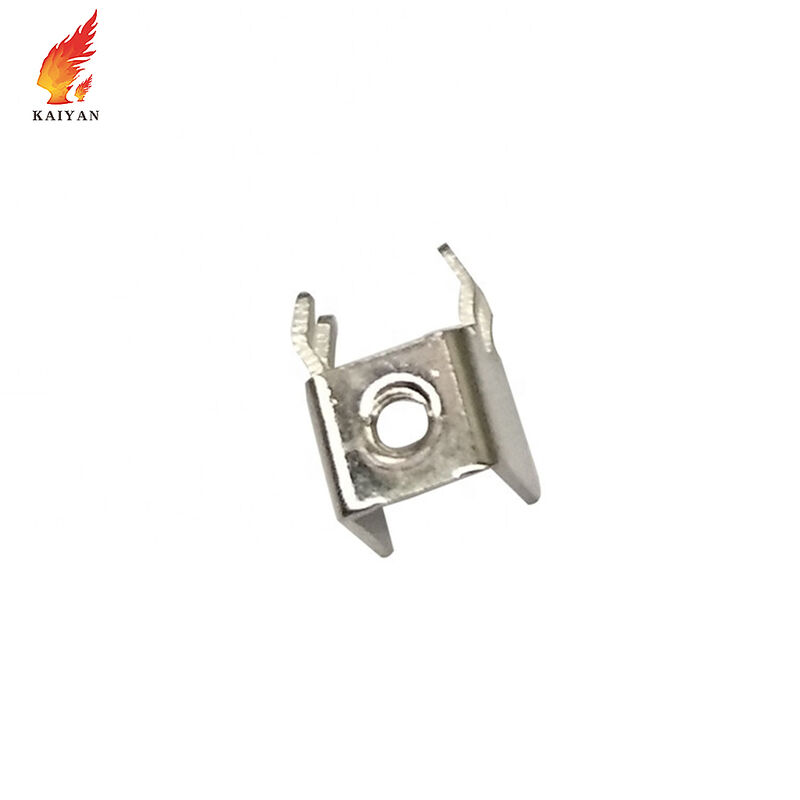

Metal Stamping PCB Mount Screw Terminal for electronic and electrical systems

PCB screw terminals are designed to provide secure, stable, and reliable wire-to-board connections for printed circuit boards. Using a precision screw clamping mechanism, they ensure strong wire fixation, low contact resistance, and easy installation, even in high-vibration environments.

The terminals are manufactured with high-conductivity copper alloy contacts to guarantee excellent electrical performance and consistent current transmission. The housing is made of UL94 V-0 flame-retardant thermoplastic, offering superior heat resistance and long-term durability. Multiple pitches, current ratings, wire ranges, and mounting options are available to meet diverse application requirements.

All PCB screw terminals are produced in-house through stamping, machining, assembly, and inspection processes, ensuring stable quality and tight tolerance control. RoHS-compliant materials are used, and OEM or custom solutions are supported for industrial, power supply, automation, and electronic control applications.

Quality control is strictly implemented throughout the production of PCB screw terminals to ensure consistent electrical and mechanical performance. All raw materials are inspected for material composition, dimensions, and RoHS compliance before production. In-process quality control is applied during stamping, tin plating, and assembly, with key checks on dimensional tolerances, clamping force, contact resistance, and plating thickness. Final inspection includes visual, mechanical, and electrical testing prior to shipment. Complete inspection records and traceability are maintained to guarantee stable quality for industrial and electronic applications.

Applications of PCB Screw Terminals

PCB screw terminals are widely used in electronic and electrical systems where secure, reliable, and serviceable wire connections are required. The screw clamping design allows easy wiring, stable contact pressure, and convenient maintenance, making them suitable for both industrial and commercial applications.

Typical Applications

• Power Supplies
  Used for AC/DC and DC/DC power input and output connections, ensuring stable current transmission.

• Industrial Control Systems
  Applied in PLCs, control boards, and automation panels for reliable signal and power connections.

• Automation Equipment
  Commonly used in motor drives, control modules, and factory automation systems.

• Inverters and Converters
  Suitable for power electronics requiring secure wiring under continuous load conditions.

• Lighting Control Systems
  Used in LED drivers, lighting controllers, and power distribution boards.

• Building and Energy Management Systems
  Applied in HVAC controllers, energy meters, and power monitoring equipment.

• Test and Measurement Equipment
  Provides easy wire connection and replacement during testing and maintenance.

PCB screw terminals support various current ratings, wire sizes, and mounting configurations, making them a flexible connection solution for a wide range of PCB-based electronic products.

FAQ 1: What wire sizes and current ratings do your PCB screw terminals support?
Answer:
Our PCB screw terminals support a wide range of wire gauges and current ratings. Specifications vary by model; detailed datasheets are available upon request.

FAQ 2: What materials are used for the metal and housing parts?
Answer:
The conductive parts are made of high-conductivity copper alloy with optional tin or nickel plating. The housing is made of UL94 V-0 flame-retardant thermoplastic.

FAQ 4: What is your standard lead time for samples and mass production?
Answer:
Sample lead time is typically 7–10 days. Mass production lead time depends on order quantity and customization requirements.
