Product Description

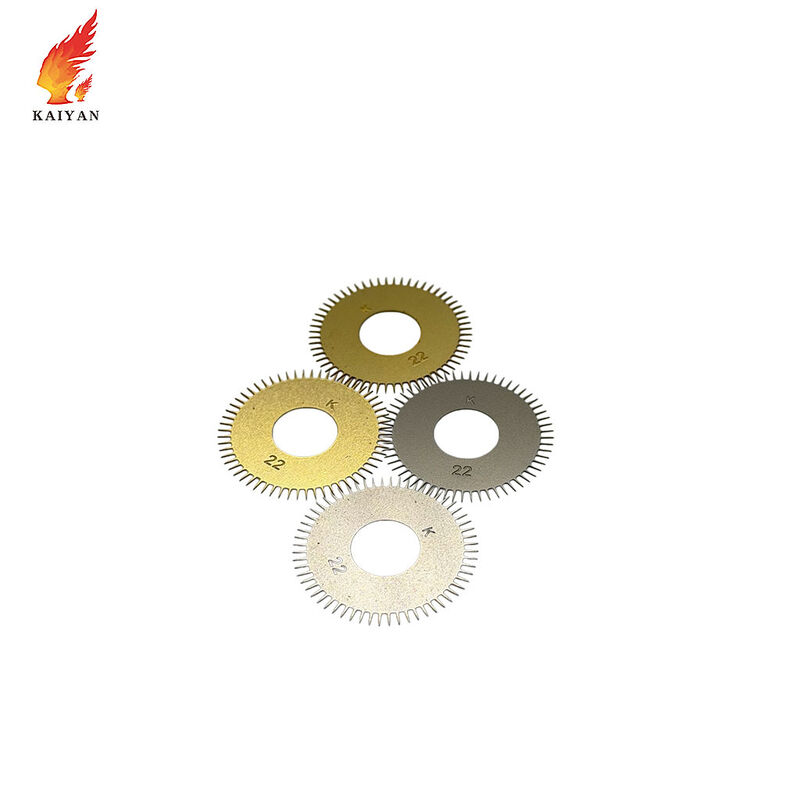

Precision etched shim washers made from brass and stainless steel are high-accuracy metal components manufactured through chemical etching technology. This process allows the production of extremely thin and complex shim shapes with burr-free edges, consistent thickness, and excellent dimensional accuracy.

Compared with traditional stamping or machining methods, chemical etching eliminates mechanical stress and deformation, making it ideal for precision spacing, alignment, and tolerance adjustment in mechanical assemblies. Brass materials offer excellent electrical conductivity and machinability, while stainless steel provides superior strength, corrosion resistance, and durability.

Our etched shim washers are available in a wide range of thicknesses, shapes, and custom sizes. Common materials include SUS301, SUS304, SUS316 stainless steel and C2600 brass. These precision shims are widely used in automotive components, electronic devices, precision instruments, industrial machinery, and aerospace applications.

OEM and ODM customization is supported according to customer drawings or samples. With advanced etching technology and strict quality control, we ensure stable production quality and reliable performance for global customers.

---

Product Specifications

---

Applications

Precision etched shim washers are widely used in industries that require accurate spacing and tolerance control:

• Automotive engines and transmission systems

• Electronic devices and circuit board assemblies

• Aerospace equipment and precision instruments

• Industrial machinery and mechanical assemblies

• Bearings, motors, and gear alignment

• Medical equipment and high-precision devices

---

Technical Features

1. High Precision Manufacturing

Chemical etching technology enables extremely precise thickness control and dimensional accuracy, ideal for precision adjustment applications.

2. Burr-Free Smooth Edges

The etching process produces smooth edges without burrs or deformation, eliminating the need for secondary deburring operations.

3. Suitable For Ultra-Thin Metal Parts

Etching is especially suitable for producing ultra-thin shim washers where stamping processes may cause deformation.

4. Complex Shapes And Fine Details

Intricate shapes, micro-holes, and detailed patterns can be produced easily through chemical etching.

5. Multiple Material Options

Brass offers excellent electrical conductivity, while stainless steel provides high strength and corrosion resistance for demanding environments.

6. Consistent Batch Production

Advanced manufacturing equipment ensures stable quality and reliable performance for large production volumes.

---

FAQ

Q1: What materials are available for etched shim washers?

We typically use brass (C2600) and stainless steel (SUS301, SUS304, SUS316) depending on the application requirements.

Q2: What is the minimum thickness you can produce?

Our etched shims can be manufactured with thicknesses as thin as 0.02 mm.

Q3: Can you produce custom shapes and dimensions?

Yes. We support full customization based on drawings, samples, or technical requirements.

Q4: Are etched shims better than stamped shims?

For ultra-thin or complex designs, chemical etching provides higher precision, burr-free edges, and no mechanical deformation compared to stamping.

Q5: What industries commonly use etched shim washers?

They are widely used in automotive, electronics, aerospace, industrial machinery, and precision equipment.
