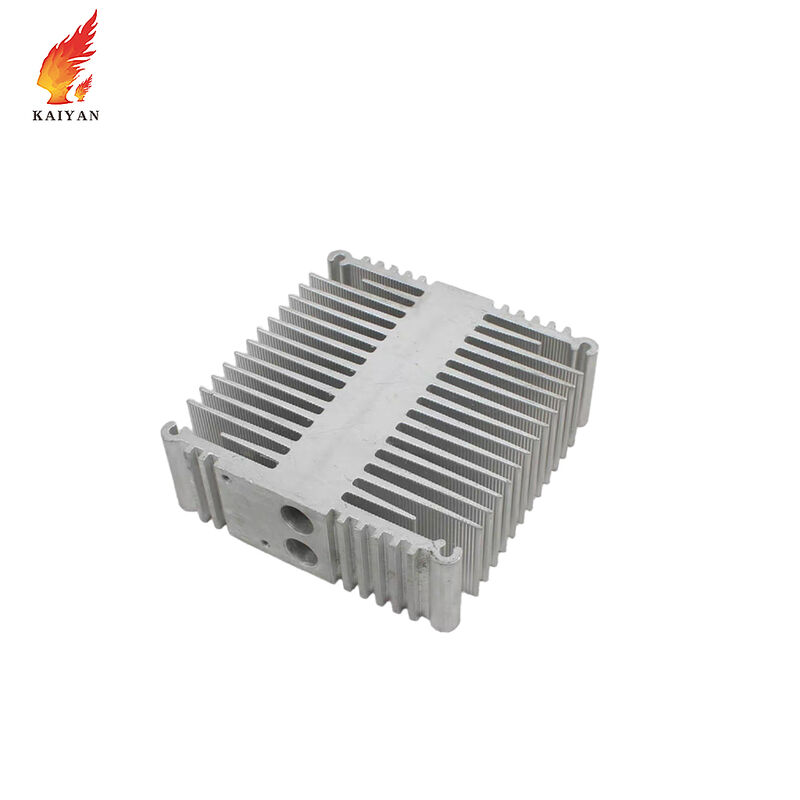

6063 6061 Aluminum Extrusion Heat Sink For Electronic Thermal Management

Aluminum extruded heat sinks are manufactured using high-quality 6063 / 6061 aluminum alloy, selected for its stable thermal conductivity, mechanical strength, and suitability for precision extrusion. The extrusion process is carried out under controlled parameters to ensure consistent profile geometry, uniform fin thickness, and stable fin spacing, providing repeatable thermal performance across mass production.

The heat sink fin structure is engineered based on specific heat transfer conditions, including natural convection and forced airflow environments. Fin height, spacing, and effective surface area are optimized to balance airflow resistance and heat dissipation efficiency, resulting in a practical and reliable thermal management solution for electronic assemblies.

After extrusion, secondary machining processes such as CNC cutting, drilling, and tapping are applied to achieve accurate mounting features, controlled flatness, and tight dimensional tolerances. These operations ensure mechanical compatibility with customer assemblies, improve installation accuracy, and support efficient production assembly.

Surface treatments, including anodizing and protective coatings, are processed under controlled conditions to achieve uniform thickness, consistent appearance, and enhanced corrosion resistance, while maintaining stable thermal performance. This controlled finishing process contributes to long-term reliability in various operating environments.

Why Choose This Aluminum Extrusion Heat Sink?

Better Heat Dissipation
Optimized aluminum extrusion profiles and fin designs provide more efficient heat transfer compared with standard or non-optimized heat sinks.

More Stable Quality
Precision extrusion combined with controlled secondary machining ensures consistent dimensions and repeatable quality across mass production.

Lower Total Cost
Compared with CNC-only or die-cast heat sinks, aluminum extrusion offers lower tooling costs and better cost efficiency for medium to high volumes.

Flexible Customization
Custom profiles, fin structures, and machining options are available to meet specific thermal and installation requirements.

Proven for Industrial Applications
Widely used in LED lighting, power electronics, telecom, automotive, and industrial control systems.

Aluminum Extrusion Heat Sink

Extrusion Process Stability and Profile Repeatability

The aluminum extrusion process is operated under controlled parameters to maintain consistent profile geometry, fin thickness, and fin spacing. Process stability is essential to ensure repeatable cross-sectional dimensions and uniform thermal behavior across different production batches and high-volume manufacturing.

Optimized Effective Fin Surface Area
Fin designs are engineered based on natural or forced convection requirements, balancing airflow and surface area to achieve efficient and practical heat dissipation.

Precision Secondary Machining for Easy Assembly
CNC drilling, tapping, and cutting ensure accurate hole positions, flatness, and dimensional consistency, improving assembly efficiency and reducing installation risks.

Surface Treatment Control and Performance Consistency

Surface finishing processes, including anodizing and coating, are conducted with controlled thickness and uniform coverage. The objective is to enhance corrosion resistance and surface durability while maintaining stable thermal performance and consistent visual appearance.

Dimensional Accuracy Through Secondary Machining

Post-extrusion machining processes such as CNC drilling, tapping, and cutting are applied to achieve accurate mounting features, controlled flatness, and consistent dimensional tolerances. These operations ensure mechanical compatibility with mating components and improve assembly repeatability.

Full Process Quality Control with 100% Inspection
Quality checks are implemented throughout material selection, extrusion, machining, and finishing stages, with 100% final inspection to guarantee dimensional accuracy and product reliability.

FAQ

1. What materials are used for Kaiyan aluminum extrusion heat sinks?

Kaiyan aluminum extrusion heat sinks are mainly made from 6063-T5 and 6061-T6 aluminum alloys, offering high thermal conductivity, good mechanical strength, and excellent corrosion resistance.

2. How does Kaiyan ensure product quality?

Quality control is implemented throughout the entire production process. From raw material inspection and process checks to 100% final inspection before shipment, every heat sink is verified to meet specification requirements.
